Mechanical Seal SE 700

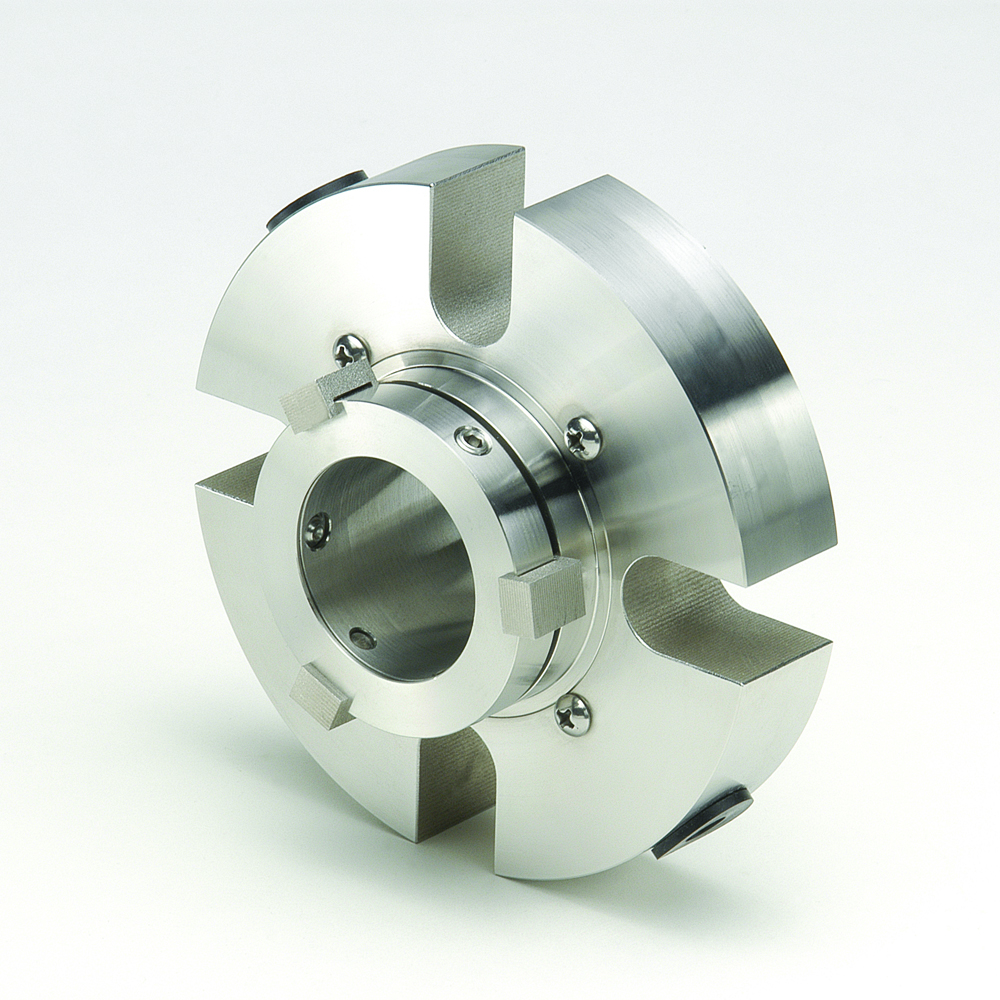

Mechanical Seal Series SE 700

Series SE 700 seals are Catridge type seals, This seals are internally balanced seal It is a compact seal, easily to install. This seals are designed for especially for high pressure application.This seal is mainly used in paper pulp ,chemical,slurry pumps.

This seals are mainly used in

  • REFINARY
  • CHEMICAL INDUSTRY
  • PETRO CHEMICAL INDUSTRY
  • OIL INDUSTRY
  • PAPER INDUSTRY
  • PHARMACEUTICAL INDUSTRY
  • WATER AND WASTE WATER INDUSTRY

SE 700 delivers outstanding sealing reliability while maintaining minimal friction and wear, even in extreme working environments.

Operating Limits:

  • Shaft Diameter: 25.00MM TO 100.00MM
  • Pressure p: 25 bar (max)
  • Temperature t: _ 20 ... +220 C
  • Velocity v: 20 m/sec

Seal Characteristics:

  • Catridge type seal
  • Single acting
  • Internally balanced seal
  • Independent of direction of rotation
  • Single & double seal

Face Materials:

⦁ Carbon, , Silicon Carbide, Tungston carbide etc…

Metal Parts:

⦁ SS 316, SS 304,Alloy 20,Hastelloy-c,Titanium

Secondary Seal:

⦁ Viton,silicon.Epdm,PTFE,Grafoil

Applications:

  • Petro chemicals

  • Pharmaceuticals

  • Paper pulp

  • Oil pump

  • Chemical pump

  • Slurry pump

  • Refinery pump
